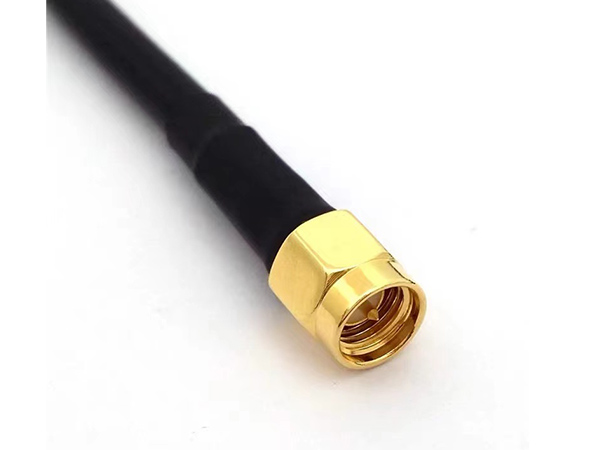

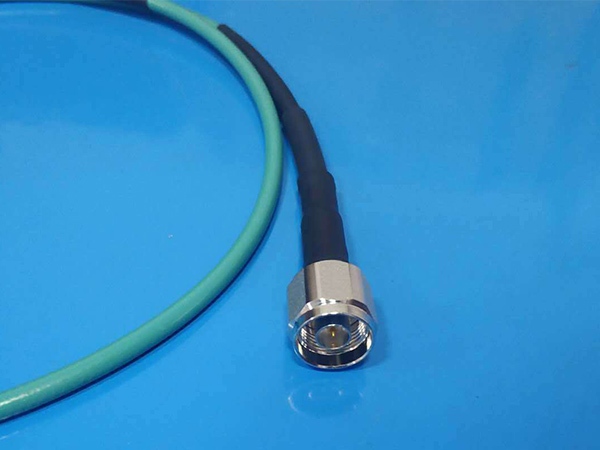

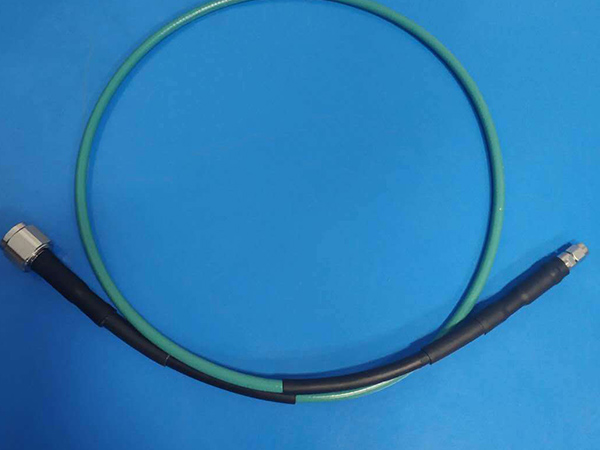

NM-SMAM cable component RG223
| Electrical properties电气性能 |
| Impedance阻抗 |
50Ω |
| Frequency频率 |
DC~18GHz |
| Insulation Resistance绝缘电阻 |
≥5000 Mohm |
| Withstand voltage耐压 |
≥1000V(AC 50Hz) |
| VSWR/Loss Back驻波比/回波损耗 |
≤1.25@18GHz |
| Insertion loss插入损耗 |
≤1.5dB@18GHz |
| Components零部件 |
| Name部件 |
Material材质 |
surface treatment表面处理 |
| Body壳体 |
Stainless stee不锈钢 |
Ct.p 鈍化处理 |
| Contact conductor 接触导体 |
Beryllium Bronze铍青铜 |
Au镀金 |
| Insulator绝缘介质 |
Teflon聚四氟乙烯 |
|
| Snap ring卡环 |
Stainless stee不锈钢 |
Ct.p 鈍化处理 |
| Welded shell焊接壳体 |
Brass黄铜 |
Au镀金 |
| Other Body其他壳体 |
Brass黄铜 |
CuSnZn 镀三元 |
|
|
|
