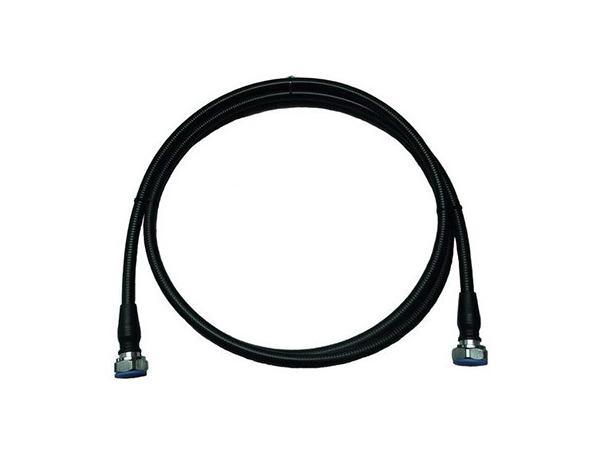

DIN 716 (M) --N (M) RF Coaxial Low Pim Test Cable Assembly
| Electrical Specifications |
| Connector Impedance |
50 Ohm |
| Operating Frequency Band |
0 – 3 GHz |
| RF Operating Voltage, maximum (vrms) |
2700.00 V |
| Outer Contact Resistance, maximum |
0.40 Mohm |
| Inner Contact Resistance, maximum |
1.50 Mohm |
| Insulation Resistance, minimum |
10000 Mohm |
| VSWR |
<1.1 |
| Insertion Loss |
Typical 0.05×√fdB+Cable Insertion Loss |
| Mechanical Specifications |
| Mating Cycles |
500 Cycles |
| Recommended Mating Torque |
25-27 Nm(DIN connector) |
| PIM |
<-165 dBc（@43 dBm） |
| Environmental Specifications |
| Operating Temperature |
-40°C to +125°C |
| Storage Temperature |
-55°C to +125°C |
| Components |
| Name |
Material |
Plating |
| Body |
Brass |
Tri-metal |
| Inner Contact |
Phosphor Copper |
Silver |
| Insulator |
PTFE |
|
|
|
|
|
|
|
|
|
|
