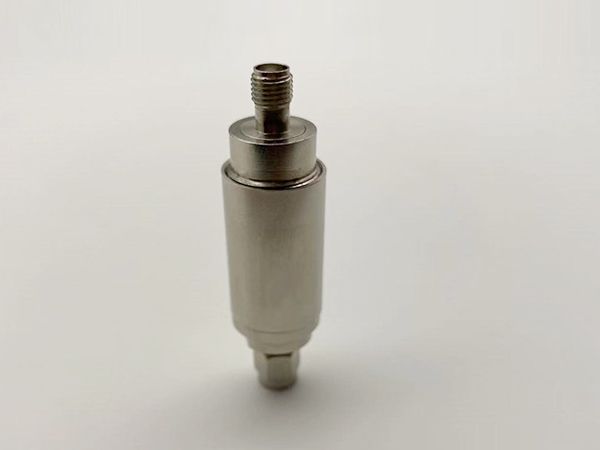

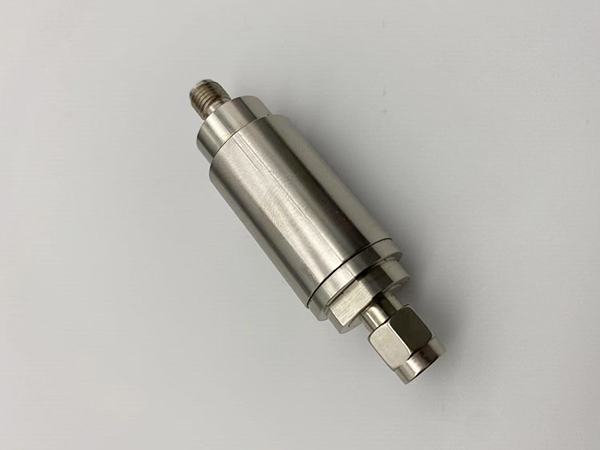

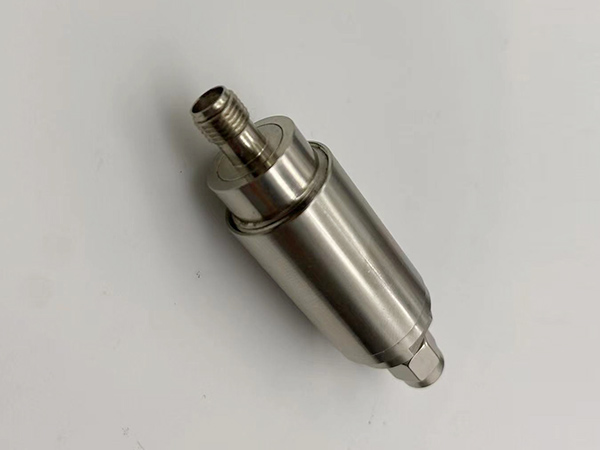

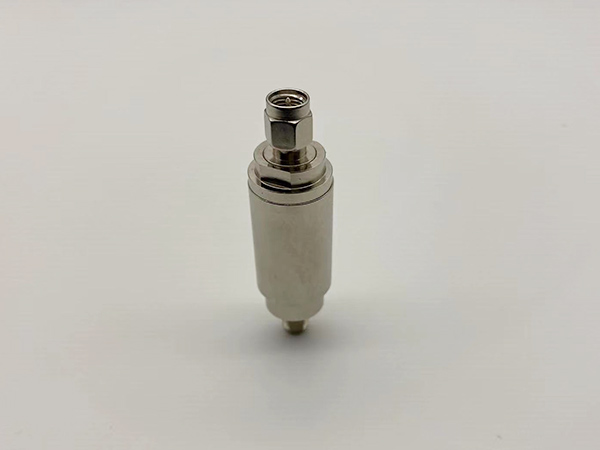

 【Origin Pic】 |
|
|
| Model No. | ATT5-XX-4-SMF(XX means attenuation in dB) | |||||||||||||
| Attenuation(dB) | 3 | 5 | 6 | 7 | 8 | 10 | 13 | 15 | 20 | 30 | ||||
| Accuracy(dB) | ±0.5 | ±0.5 | ±0.8 | ±0.8 | ±0.8 | ±1.0 | ±1.2 | ±1.2 | ±1.2 | ±1.5 | Wide Frequency Band Covering DC-4GHz | |||
| Freq(MHz) | DC-4GHz | Good Performance in Attenuation Accuracy | ||||||||||||
| VSWR | ≤1.20 | Indoor Using IP60 | ||||||||||||
| Power Rating(W) | 4W (average) | Low VSWR | ||||||||||||
| Impedance | 50 ohm | Available with Type N, 7/16DIN or 4.3/10 Connectors | ||||||||||||
| Connector | SMA Male to SMA Female | |||||||||||||
| Material | Brass | |||||||||||||
| Operating Tem(℃) | -55°C to +125°C | |||||||||||||
| Weight(kg) | 0.15 | |||||||||||||
