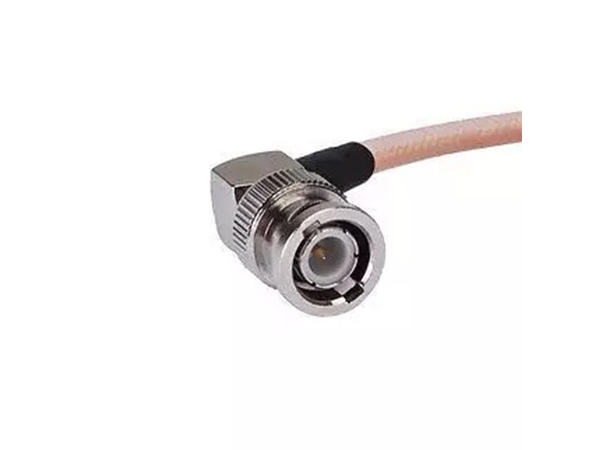

BNC Right Angle Plug Cable Connector Rg142 Jumper Cable for Antenna
| Electrical Specifications |
| Connector Impedance |
50 Ohm |
| Operating Frequency Band |
0 – 3 GHz |
| RF Operating Voltage, maximum (vrms) |
1500.00 V |
| Outer Contact Resistance, maximum |
0.20 Mohm |
| Inner Contact Resistance, maximum |
1.00 Mohm |
| Insulation Resistance, minimum |
5000 Mohm |
| VSWR |
<1.2 |
| Insertion Loss |
Typical 0.05×√fdB+Cable Insertion Loss |
| Mechanical Specifications |
| Mating Cycles |
500 Cycles |
| Recommended Mating Torque |
0.6-2.5 Nm |
| Environmental Specifications |
| Operating Temperature |
-40°C to +125°C |
| Storage Temperature |
-55°C to +125°C |
| Components |
| Name |
Material |
Plating |
| Body |
Brass |
Tri-metal |
| Inner Contact |
Beryllium Bronze |
Gold |
| Insulator |
PTFE |
|
|
|
|
|
|
|
