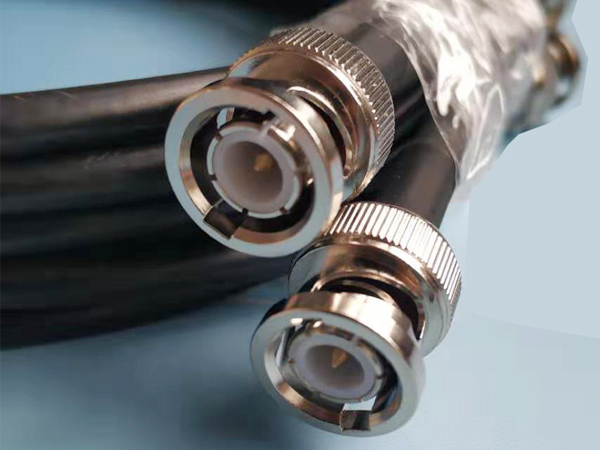

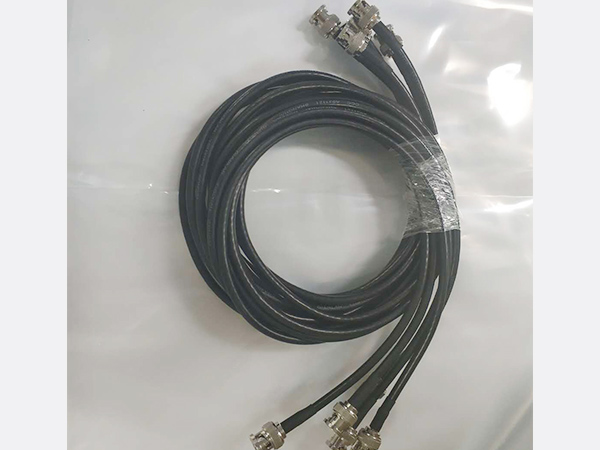

BNC Male to BNC Male RF Coaxial Test Cable Assembly
| Electrical Specifications |
|
| Connector Impedance |
50 Ohm |
|
| Operating Frequency Band |
0 – 3 GHz |
|
| RF Operating Voltage, maximum (vrms) |
1500.00 V |
|
| Outer Contact Resistance, maximum |
0.20 Mohm |
|
| Inner Contact Resistance, maximum |
1.00 Mohm |
|
| Insulation Resistance, minimum |
5000 Mohm |
|
| VSWR |
<1.3 |
|
| Insertion Loss |
Typical 0.05×√fdB+Cable Insertion Loss |
|
| Mechanical Specifications |
|
| Mating Cycles |
500 Cycles |
|
| Recommended Mating Torque |
0.6-2.5 Nm |
|
| Environmental Specifications |
|
| Operating Temperature |
-40°C to +125°C |
|
| Storage Temperature |
-55°C to +125°C |
|
| Components |
|
| Name |
Material |
Plating |
|
| Body |
Brass |
Tri-metal |
|
| Inner Contact |
Brass |
Gold |
|
| Insulator |
PTFE |
|
|
|
|
|
|
|
|
|
|
